FEATURES:
Stratified sheets obtained with pure cotton fabric impregnated with thermosetting phenolic resins which, after special polymerization treatments, have excellent mechanical resistance together with good dielectric characteristics. Characteristics indicated for obtaining pieces used in the electromechanical, electrotechnical, mechanical, etc. industry sectors.

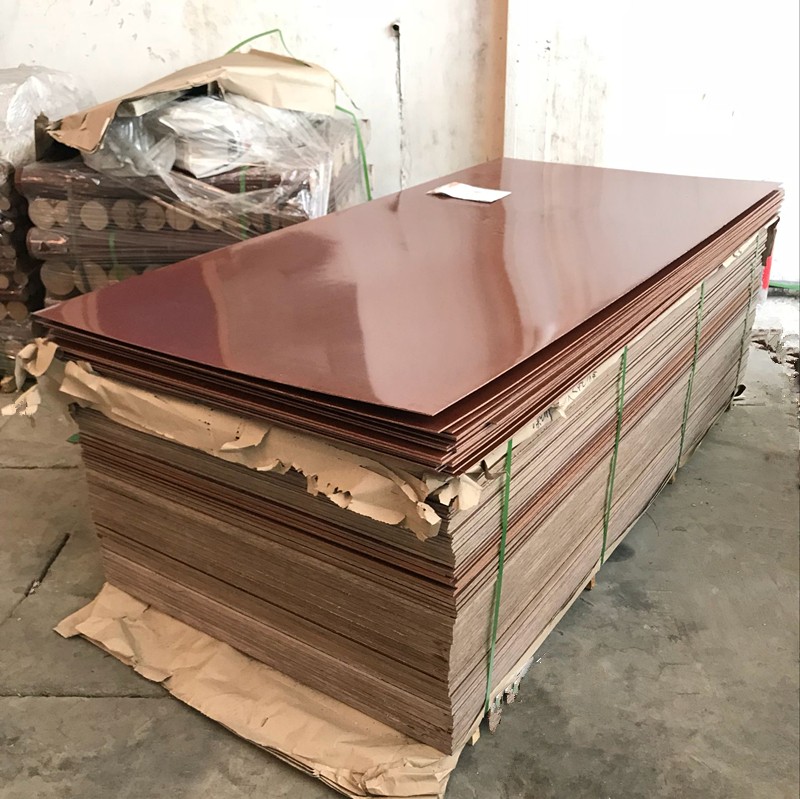

Range of PHENOLIC RESIN (BAKELITE®) SHEETS
SIZES | 1.070 x 2.070 mm |
| Standard: from 3 to 50 mm on Request: from 0,5 to 2,5 mm and up to 100 mm |
DENSITY | Standard: 44 Threads/Cm2 on Request: 26 – 40 – 60 Fili/Cm2 |
 COLOR | Standard PAPER and CLOTH: Natural (Brown) on Request CLOTH: Black (with Minimum Quantity) |
THICKNESS
APPLICATION EXAMPLES:
Construction of silent gears, camshafts, bushings, sliding guides, spacers, bearing panels for rolling mills, vanes for decompressors and other various details for all industrial sectors, etc.
WORKSHOP: ⇒ Click Here
Our technicians at our Workshop are at your complete disposal for the realization of Details to Drawing (Rings, Discs, Guides …. etc.). Numerical control machining.
